Reefer Data Collection & Remote Monitoring System

Eliminating periodic manual temperature logging for vessels and ports, ensuring temperature control and transport safety

The reefer data collection device is developed in accordance with ISO 10368-2006 standard. It uses a high-performance processor and power line carrier communication technology to collect container data in real time and transmit it to the monitoring center via the power lines supplying the reefer containers for data analysis and processing, enabling remote temperature monitoring and reefer status management.

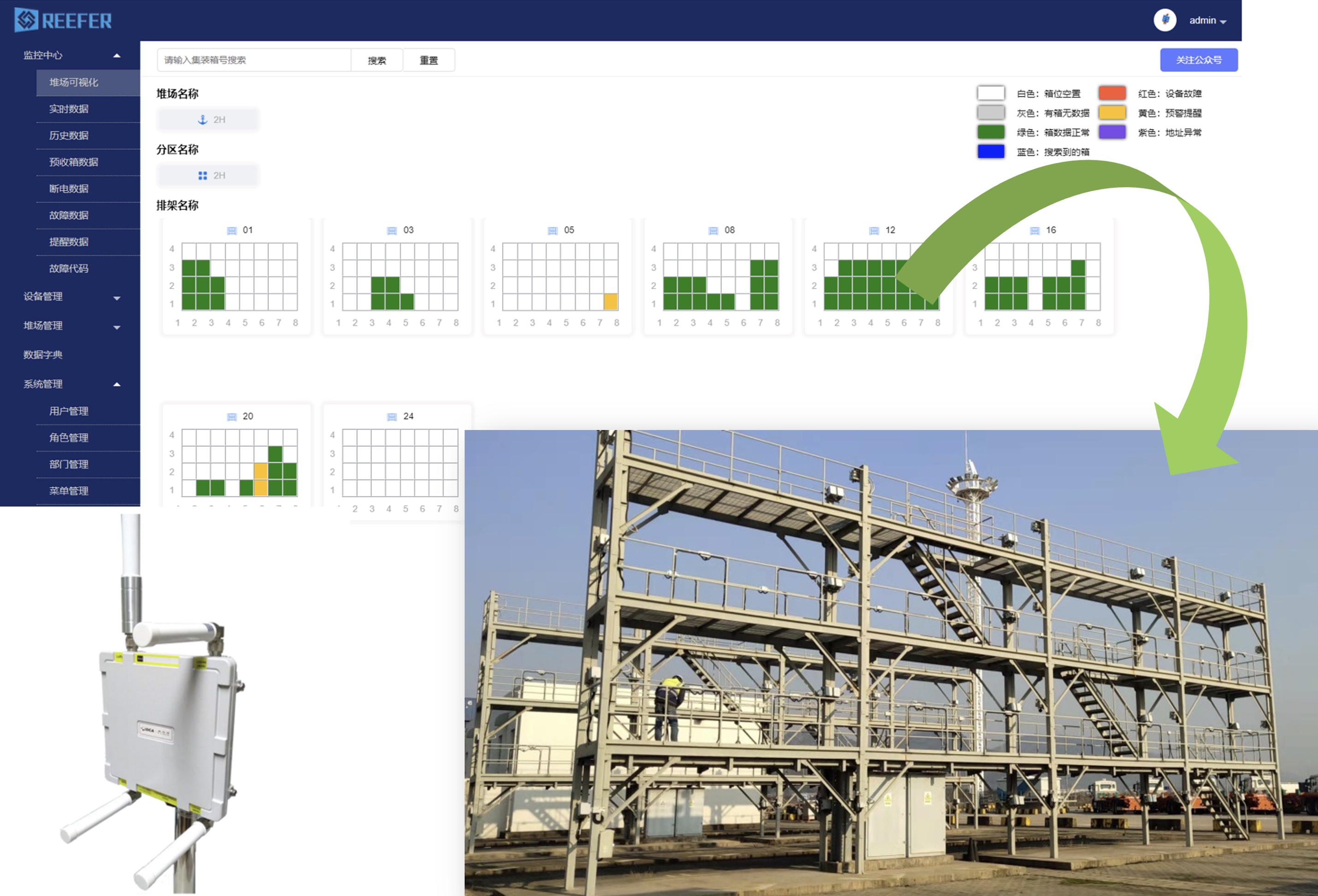

Through reefer data collection devices, network transmission and software management system, we achieve temperature data collection, reefer abnormality alarms, effectively improving real-time control and early warning for all reefers in yards and vessels. Install remote inspection devices in reefer storage areas to collect container number, status, set temperature, supply/return air temperature, humidity, voltage, current, alarm codes and more. The port terminal monitoring center displays real-time reefer temperature/humidity/current/voltage data, visualizes reefer slot maps, and supports remote temperature setting and inspection management.

What problem is being solved?

Periodic on-site manual temperature logging is inefficient and increases yard management costs.
Remote monitoring can reduce labor costs by over 80%.
Manual inspection requires traversing container stacking areas at height, posing high safety risks.
Remote inspection reduces safety incidents.
When a reefer malfunctions, manual inspection may not detect it in time.
Remote fault diagnosis enables timely and accurate fault detection.
Adjusting reefer temperature manually takes time and has poor data synchronization. Remote inspection enables data synchronization with terminal and shipping company systems.

Products

Data Collector

Remote Monitoring System

Compatibility: Supports Carrier, Daikin, StarCool, Thermo King Reliability: Waterproof, dustproof, moisture-proof, corrosion-resistant Practicality: Plug and play, one gateway supports up to 60 reefer data collection points Adaptability: Compatible with common rack structures: 3*6, 4*6, 5*6, 6*6 and corresponding bidirectional racks.
Reefer Remote Monitoring: Communicates with reefers to monitor operating status and fault information in real time. All-in-One Solution: Integrated IoT cloud-pipe-end architecture with easy-to-operate management system. Integrable Cloud: Supports HTTP, MQTT protocols and open APIs for integration with port and shipping TOS systems. Secure & Reliable: All chips in hardware products are domestic; system software uses national encryption algorithms for high reliability and security.

Specifications

Product Name Data Collector Gateway Data Collector
ModelUC-GUC-D
Dimensions300mm*150mm*95mm100mm*60mm*50mm
MaterialAluminum AlloyABS/PC Engineering Plastic
Power SupplyDC12~24VDC12~24V
Data TransmissionGateway to Server: Ethernet, PLC, WiFi, CellularCollector to Gateway: CAN Bus, PLC
Report Frequency>=30s>=30s
Protection RatingIP67IP67
Operating Temp-40℃~+85℃-40℃~+85℃
Operating Humidity5%RH~95%RH5%RH~95%RH
Status IndicatorSupports mobile device status query3x LED indicators
Power Rating<=10W<=5W
Antenna InterfaceSMANone
Local Data StorageStores ≥3000 reefer records, supporting at least 60 reefers for 24 hours at 30-minute intervals.

Installation Plan

CAN bus + conduit, deployed on racks; Data collector gateway + mounting plate, fixed on rack rails; Data collector + mounting plate, fixed on rack rails; Distribution box, fixed on rack column side; Power supply, electrical wiring connection; Software platform TOS integration; Large-screen data visualization display; System integration testing; Acceptance report.

ROI

01
Reduce labor costs by over 80%
02
Minimize cargo damage and reduce claim risks
03
Extend reefer equipment life with optimized maintenance
04
Real-time alarm response, minimizing downtime losses
